SITA AM Range (96- 160m3/hr) with added Touch Screen Display, Intensity Meter and 316 Stainless Steel, SITA AM 96 Plus, SITA AM 125 PLUS, SITA AM 160 Plus full details...

SITA AM Range (96- 160m3/hr) with added Touch Screen Display, Intensity Meter and 316 Stainless Steel, SITA AM 96 Plus, SITA AM 125 PLUS, SITA AM 160 Plus full details...

  • Stainless Steel 304 or 316 available
  • L Shape Configuration
  • Can be fitted Vertical or Horizontal
  • Baffle Plates to increase dose
  • Plus models with UV/Temperature Sensor
  • IP 65 lamp Connection
  • 200w High Power Amalgam lamp
    other Options
  • Manual, Automatic or Chemical cleaning options
  • 4/20 mA remote on/off
  • Datalog Software, GSM alarm box
  • WRAS Approved - 1905378
Related products:- UV Disinfection - Click to see all Sita UV Systems - Click to see all

Please call us on +44 (0)1948 710699 for the latest web price on this item

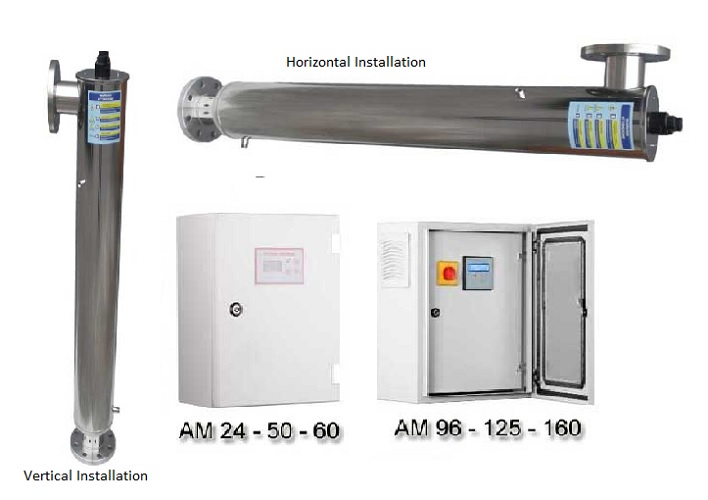

The AM series UV systems are composed of:
- Stainless steel reactor that contains the special germicidal lamps
- Control panel, made in compliance with the CE standard/UL Listed

Features
- Stainless steel 304 or 306L
- L shape configuration
- Baffle plates to increase dose
- Plus models with UV / temperature sensor
- IP65 lamp connection
- 200W High power amalgam lamp

Options available
Manual, automatic or chemical cleaning
4/20 mA remote on/off
Datalog software, GSM alarm box

Main Application:
Water Disinfection for: - Municipal water
- Industrial process water
- Food & Beverage industry
- Hospitals
- Hot water
- Horticulture

Certification:
CE, WRAS, GOST

Technical specification:
Flow rates: from 20 to 160 m3 /h (depending on UV-C transmittance value)
UV-C dose after 12000 hr: 400 J/m2
Power: from 0,44 kW to 6 kW
Connections: treated or flange type depending on model
Lamps: High efficiency low pressure amalgam lamps – 200W
Lamps lifespan: 12.000 hrs
Sensor: UV-C selective sensor (on PLUS models)
Max Pressure: 10 bars (optional 16 or 25 bars)
Temperature range: 0 – 50 °C (ask for higher temperature)
UV reactor material: AM 24-50 aand 60 Stainless steel 304 (SS 316L optional)
AM 96-125 and 160 only SS 316L
Control Panel material: Painted steel – RAL 7035
