Wrekin Water HF10BB 10in High Flow Jumbo Filter Housing with 1in BSP Ports full details...

Wrekin Water HF10BB 10in High Flow Jumbo Filter Housing with 1in BSP Ports full details...

Wrekin Water
  • Suitable PHR10BB refillable PH Correction Filter
  • Top Quality High Flow Filter Housing
  • 1'' BSP female inlet/outlet and Pressure Release valve
  • Complete with Spanner & Metal Fixing Bracket
  • Takes a 4.5in (115mm) Diameter Cartridge (BB) x 10in
Related products:- Private Water Treatment - Click to see all PH Cartridges - Click to see all
Additional info:- Product options:-
*Incl. standard delivery to all UK Mainland Postcodes. (Excl. Highlands)
Code Details *Price Incl VAT
HF10BBSET High Flow 10in Jumbo Housing with 1 inch ports, Bracket and Spanner £55.20
(£46.00 Ex VAT)

*Incl. standard delivery to all UK Mainland Postcodes. (Excl. Highlands) If you are ordering from outside the UK, please call us on +44(0)1948 710699 for our most competitive shipping rate Product details:-

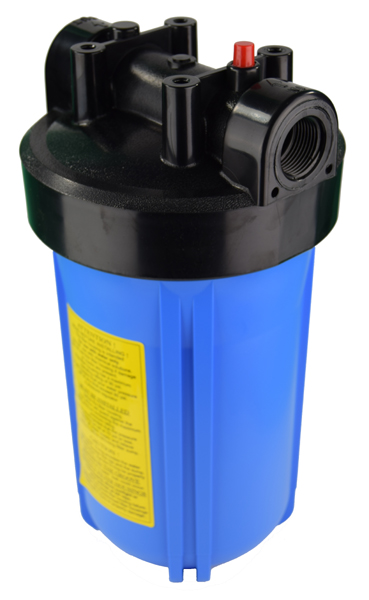

High flow filter housing with 1” inlet and outlet ports
This Housing accepts any 10” High Flow cartridge. The unit has an air release mechanism to relieve water pressure when changing cartridges. A support bracket is supplied as standard. It is recommended that isolating valves are fitted either side of the unit so that the supply of water to the housing may be turned off when a filter change is required. The installer needs to supply the fittings MI 1" x 22mm or 1" x 28mm Couplers for connection to adjoining pipework. Fit on cold water lines only. Protect from freezing.

SPECIFICATIONS
Max flow through empty housing: * Approx 76 l/m at 3 bar (42psi)
Min pressure:- Approx 2 Bar (28psi)
Max pressure:- 6.8 Bar
Max water temp:- 20°C Water, 30°C ambient
Height:- 350 mm(470mm With Bracket)
Width 200mm
Depth:- 200 mm
Inlet / Outlet:- 1'' Bsp female
Housing material:- Polypropylene
Colour:- Blue
Filters cartridges:- 10 inch nominal x 4.5in Diameter. Referred to as BB - Big Blue
Includes:-
Robust Spanner
Built in pressure relief valve
Heavy Duty Powder Coated Metal fixing bracket with Screws


* Flow rate through housing
The maximum flow rate shows the flow through an empty housing. The flow will decrease
according to the type of cartridge installed and the water supply pressure.
